Information included in the article
Dashboard

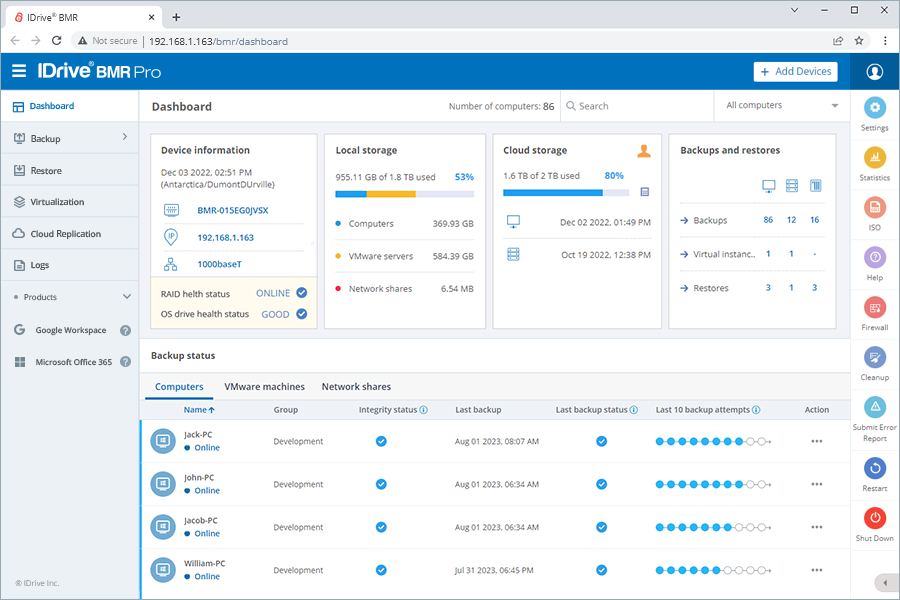

View device information and summary of local and cloud storage, and the number of backups, virtual instances, and restores on your IDrive BMR device. The Dashboard page also displays the backup status of computers, VMware machines, and network shares.
Device information
The Device Information section displays the unique serial number, IP address, and the LAN speed of the device along with the health status of the storage and OS drive. Click this section to view and configure the network settings of the device.
Local storage
The Local Storage section summarizes the storage utilization of the IDrive BMR device. It provides information on the storage utilization by computers, VMware servers and network shares. Click this section for detailed information on storage space.
Cloud storage
The Cloud storage section displays the storage utilization of computers and VMware servers. It also displays the latest cloud recovery point captured for computers and VMware servers. Click this section to open the Cloud replication page where you can schedule data transfer from local to cloud storage or manually initiate the cloud transfer.
Backups and restores
The Backup and restores section displays the number of protected devices with backups, virtual instances, and restore paths. For network shares, this section displays the number of backups and restore paths.
Backup status

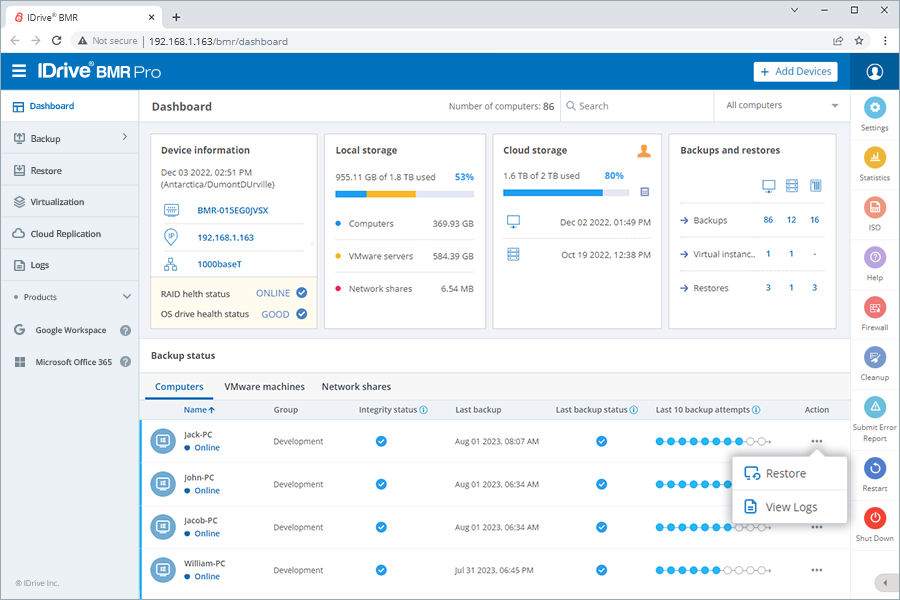

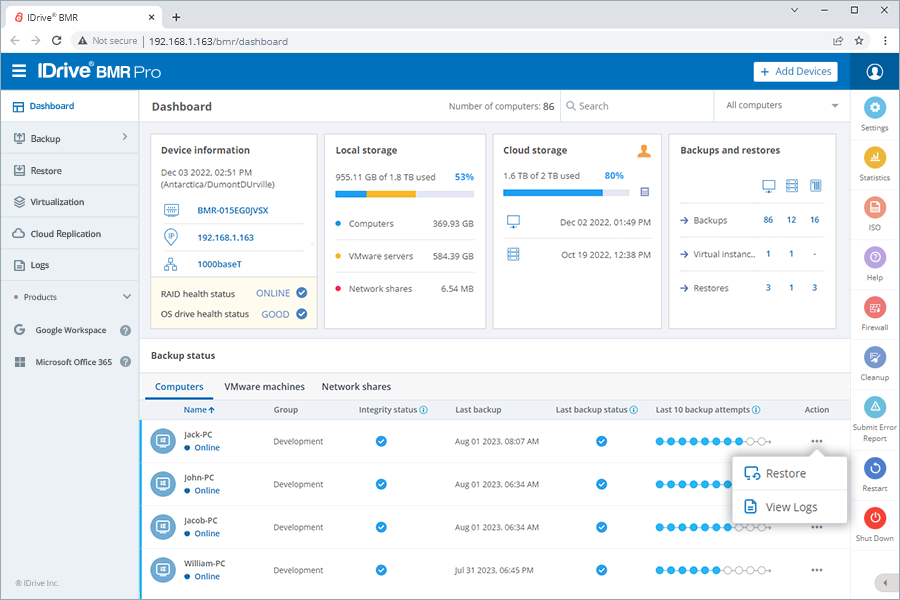

Track the backup status of all the computers, VMware machines, and network shares from this section on the Dashboard. This section displays the integrity status, last backup, storage, local backup status, and last 10 backup attempts. Use the menu options to perform restore and view logs for the computer, VMware machine, or network share.
Note: The local storage column of network shares displays both the storage utilization of the shares and the local snapshots, if any.
