Information included in the article
- IDrive BMR WinRE recovery media and its uses
- Requirements for bare-metal restore
- Build a WinRE recovery media for future use
- Build a WinRE recovery media for immediate use
IDrive BMR WinRE recovery media and its uses
IDrive BMR Windows Recovery Media (WinRE) is a recovery environment used to boot up a computer on which bare-metal restore needs to be initiated. You can build a WinRE recovery media for immediate or future use.
You can use the IDrive BMR WinRE recovery media to:
- Perform bare-metal restore of the data backups stored in the IDrive BMR device.
- Repair Windows OS booting issues during bare-metal restore and virtualization, using the in-built Windows tools.
Note:
- Due to Microsoft's license restrictions, IDrive BMR does not provide pre-built WinRE ISO. However, the IDrive BMR Recovery Builder application is provided for hassle-free recovery media creation.
- It is recommended to build the recovery media immediately after receiving the IDrive BMR device to enable seamless bare-metal recovery.
- The ISO recovery media is backward-compatible. Therefore, it is recommended to use the latest Windows OS for creating the recovery media.
Requirements for bare-metal restore
The following are the requirements for performing a bare-metal restore:
- USB drive with a minimum of 4 GB storage — to create USB recovery media.
- Ensure the drives on your target computer are healthy (run SMART checks on the drives if necessary).
- The target computer must be bootable from a USB storage device.
- The IDrive BMR device and the target computer should be within the same LAN.
- The target computer should have a wired network connection to the LAN (DHCP is recommended).
- If the target computer has hardware RAID, it should be configured before initiating the restore process.
- For optimal performance during bare-metal restore, stop any ongoing backup operation.
Build a WinRE recovery media for future use
To build a WinRE recovery media for future use,
- Launch the setup.
- Select Future Use.
- Click Browse, select the target destination, and click Next.

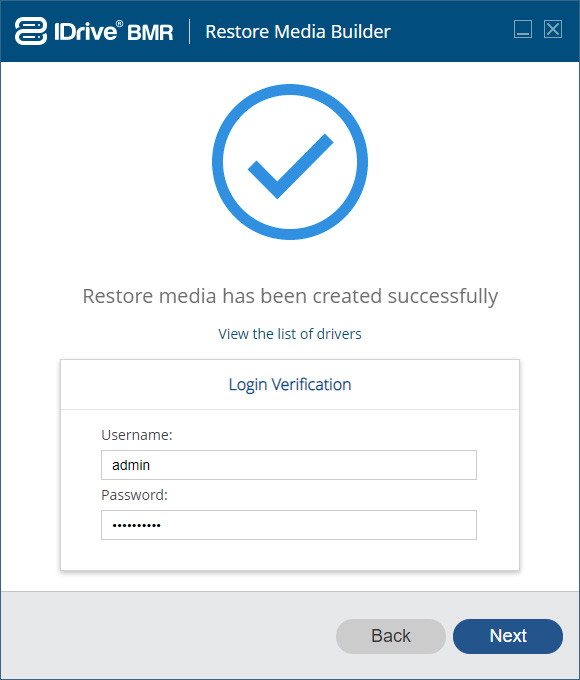

The ISO progress will be displayed on the page. - You will receive a success message once the ISO build is completed. Enter the IP address and click Next.
- You will be directed to the sign in page. Enter your sign in credentials and click Next.
- The upload progress will be displayed.
You will be notified once the upload is completed.
Build a WinRE recovery media for immediate use
To build a WinRE recovery media for immediate use,
- Launch the setup.
- Select Immediate Use.
- Select Create a Bootable ISO file, browse and select a target destination for the ISO file, and click Next.
The ISO progress will be displayed on the page. - You will receive a success message once the ISO build is completed.
To create a bootable USB for immediate use,
- Select Create a bootable USB and select the partition style and the USB device from the respective dropdowns.
- Click Next. The USB creation progress will be displayed.
- You will be notified once the USB bootable device is successfully created along with further instruction to use the bootable device.
Note:
- If the setup is not able to find the .wim file, you will be prompted to download ADK after selecting future use or immediate use option.
- The new page that appears will ask the user to download ADK from the link given in the instruction. After the ADK setup is completed the Next button will be enabled.
- Click Next to proceed with the aforementioned options.
